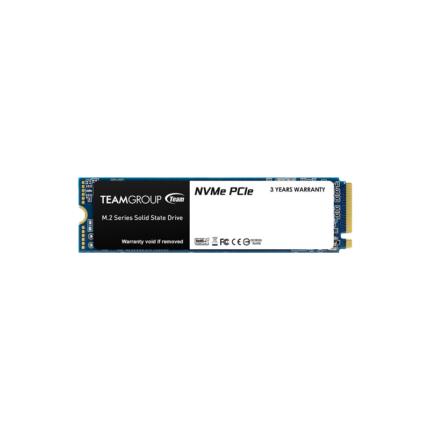

TeamGroup MP33 256GB NVMe PCIe Gen3x4 M.2 SSD
TEAMGROUP MP33 256GB NVME M.2 SSD (03YW) රු23,500.00
or 3 X රු3,300.00 with Koko
Back to products
TeamGroup MP33 256GB NVMe PCIe Gen3x4 M.2 SSD
TEAMGROUP MP33 256GB NVME M.2 SSD (03YW) රු17,500.00
or 3 X රු3,300.00 with Koko

Prolink PRO701SFC Line Interactive UPS (2YWC/1YWB)

රු9,900.00

or 3 X රු3,300.00 with Koko

-Simulated sine wave

-Cold start function

-Microprocessor control

-Off-mode charging

***UPS Circuit Two Years Warranty***
***UPS Battery One Year Warranty***

5 in stock

Categories: ,
Chat via WhatsApp
Add to wishlist
Add to compare

Delivery Information (Estimated Delivery Time)

Store Pickup

Same Day Working Hours

Islandwide Delivery

2 to 4 working days

Description

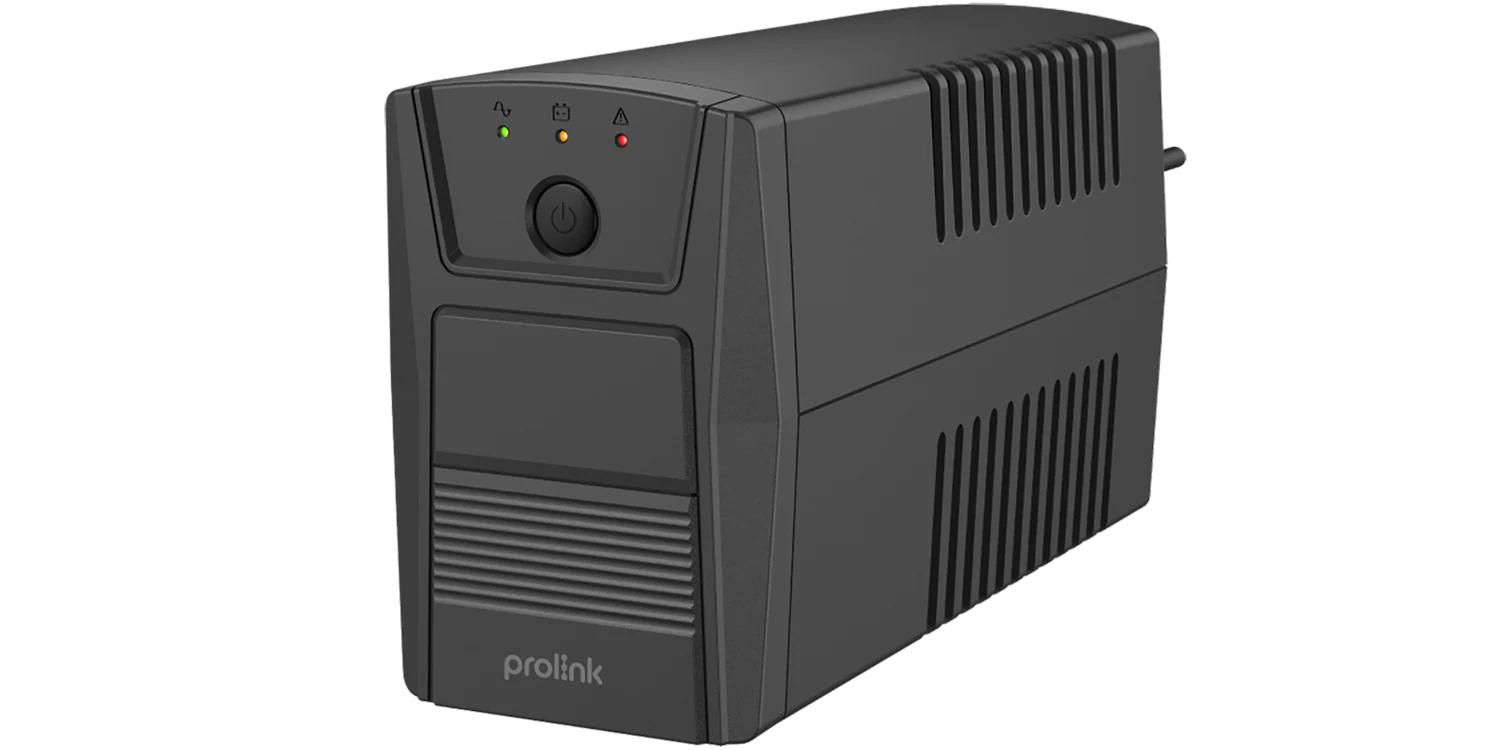

Prolink PRO701SFC Line Interactive UPS
***UPS Circuit Two Years Warranty***
***UPS Battery One Year Warranty***

Super Fast Charging Line Interactive Series



PROLiNK PRO701SFC is a single-phase input/ single-phase output Line-Interactive UPS system with PROLiNK’s latest Super-Fast Charging technology.

SUPER FAST CHARGING
Battery can be recharged to 90% of its capacity within 2-4 hours.

SURGE PROTECTION – PROVIDES SURGE PROTECTION FOR YOUR EQUIPMENT
Provides protection for the connected equipment from incoming spikes, surges, etc. Extra assurance while keeping your network safe from disruptive power surges.

ADVANCE EARLY WARNING OF UPS SHUTDOWN – AMPLE TIME TO BACKUP YOUR FILES
Immediately alerts you to an output overload, high temperature or low battery condition. Ample time to either correct the condition or shutdown your system before battery time runs out.

OVERLOAD PROTECTION
Initiate the alarm to inform the user in an event of an overload. Automatic shutdown, thus prolonging the lifespan of the UPS.

OVER TEMPERATURE PROTECTION
Shuts the power supply down in the event of unacceptably high internal temperatures.

INTELLIGENT BATTERY MANAGEMENT – BETTER RELIABILITY AND PROTECTION
Additional protection for battery overcharging and deep discharging. Maximizes battery performance, life and reliability through intelligent precision charging.

GENERAL

Capacity 650VA
Dimension (mm) 286 x 96 x 138 (D x W x H)
Weight (kg) 4.4

INPUT

Voltage Range 162 ~ 290VAC (Single boost)140 ~ 300VAC (Double boost)
Frequency 50Hz/60Hz (Auto-sensing)
Phase Single + GND

OUTPUT

Voltage Range 220-240VAC
Battery Mode 220-240VAC
Frequency 50Hz ±1% (Battery mode)
Waveform Simulated sine wave (Battery mode)Sine wave (AC mode)
Transfer Time 2ms typical

BATTERY

Type 12V/8.2AH x 1
Backup Time 8 – 20 mins depending on load
Recharge Time 2-4 hours recover to 90% capacity

INTERFACE & INDICATORS

Interface RS232, USB port, RJ45/RJ11 (Optional)
Display LED/LCD Optional
Alarm Batt. Mode, low battery, overload, fault, etc.

PROTECTION/MONITORING

Short Circuit Protection Yes (Line mode & battery mode)
Surge Protection Yes
Alarm Audible & Visual
Overload Protection Line mode : 100 – 120% 1 min change to fault mode
>120% change to fault mode immediately Battery mode : 100 – 120% 1 min change to fault mode
>120% change to fault mode immediately
Intelligent Battery Prevent overcharging of battery
Management Protect battery and prolong battery life

Real Panel

1. AC Mode Indicator

Green LED Lighting

2. Battery Mode Indicator

Battery Normal : Yellow LED Lighting and Blinking every 30s
Battery Low: Yellow LED Lighting and Blinking every 2s

3. Overload and Fault Indicator

Overload: Red LED Blinking every 2s
Fault: Red LED Lighting

4. Power Switch

5. Power AC Input

6. Backup Outlets
