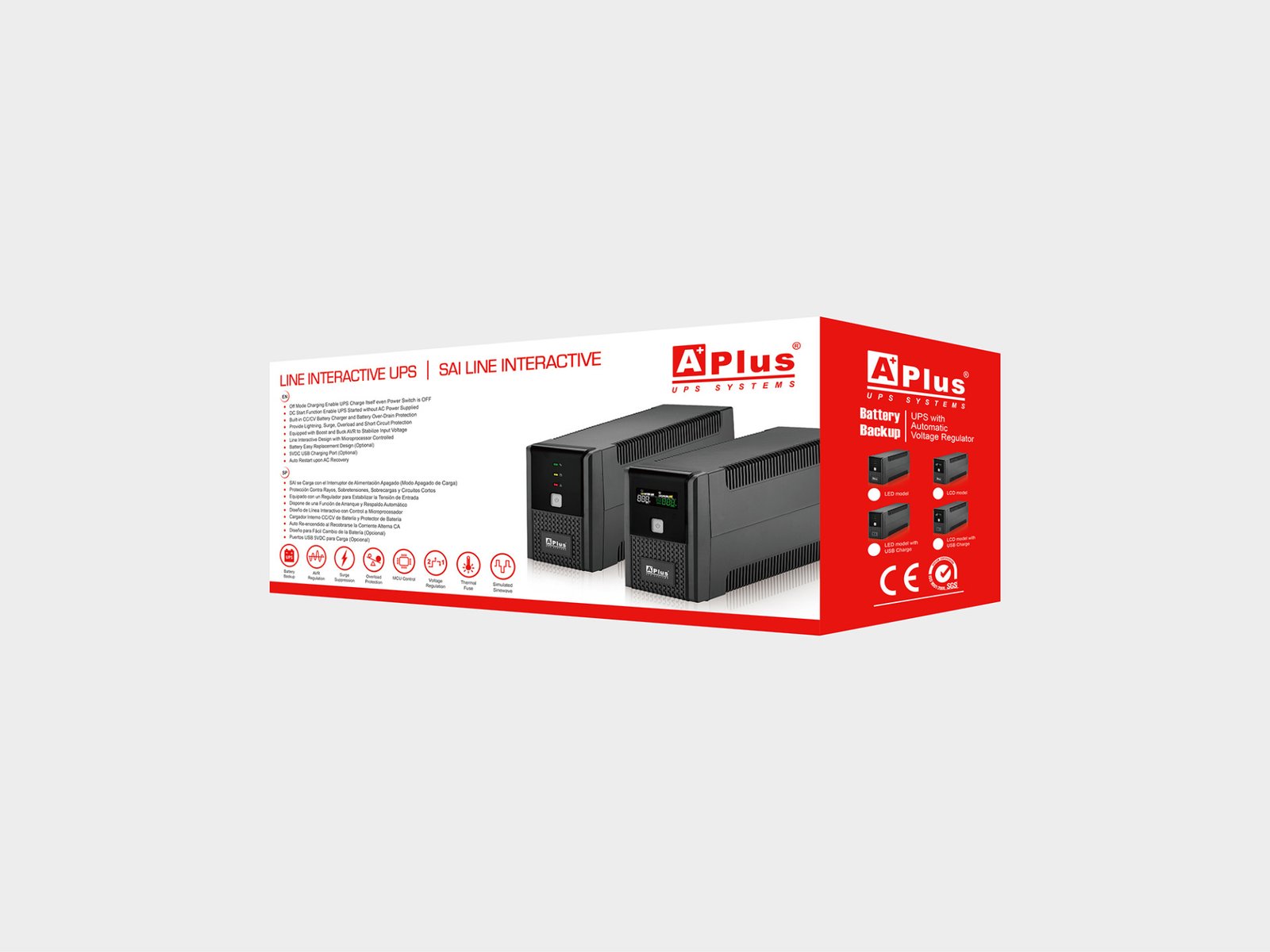

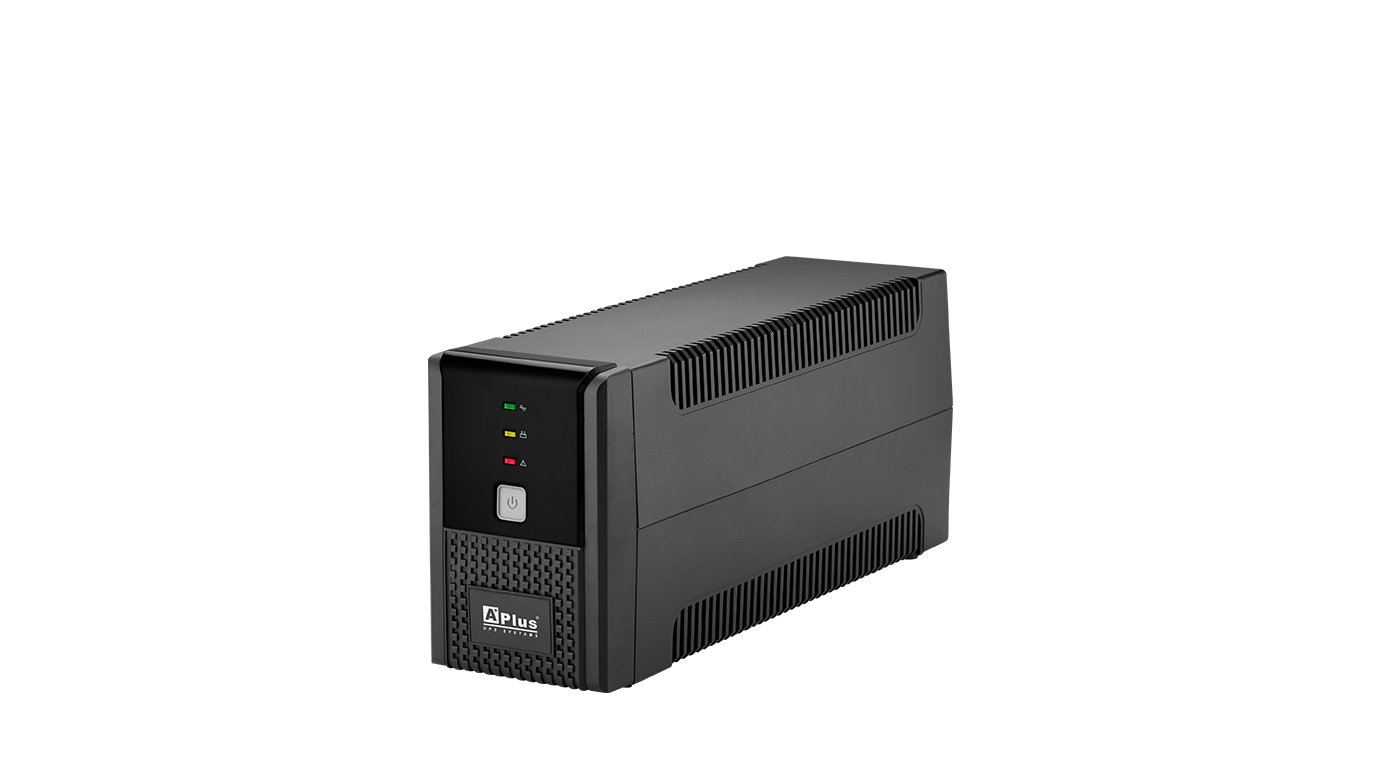

A Plus 5E LINE INTERACTIVE 650VA UPS (02YW)

රු10,500.00

or 3 X රු3,500.00 with

●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  Over / under voltage protection (UPS will go to battery mode)
●  Lightning / surge protection 175 joules
●  Easy replacement battery design

1 in stock

Product successfully added to the Quote List

Categories: Line Interactive UPS, UPS

Chat via WhatsApp

Add to wishlist

Add to compare

Delivery Information (Estimated Delivery Time)

Store Pickup

Same Day Working Hours

Islandwide Delivery

2 to 4 working days

Description

MODEL	Plus5E- 600R4	Plus5E- 650R4	Plus5E- 800R4	Plus5E- 1000R4	Plus5E- 1000R4	Plus5E- 1200R4	Plus5E- 1500R4	Plus5E- 2000R4	Plus5E- 3000R4
	Plus5E- U600R4	Plus5E- U650R4	Plus5E- U800R4	Plus5E- U1000R4	Plus5E- U1000R4	Plus5E- U1200R4	Plus5E- U1500R4	Plus5E- U2000R4	Plus5E- U3000R4
CAPACITY	600VA/360W	650VA/325W	800VA/480W	1000VA/600W	1000VA/600W	1200VA/720W	1500VA/900W	2000VA/1200W	3000VA/1800W
INPUT
Voltage	220/230/240Vac
Voltage Range	-30%, +25%
Frequency	50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation	+/-10%
Frequency	AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform	Simulated Sinewave
Transfer Time	<6ms (Typical)
Outlet	Universal *2pcs Backup/AVR/Surge protected				Universal 4pcs + IEC-320 C13 2pcs Backup/AVR/Surge protected
BATTERY
Type	Maintenance free sealed lead-acid battery
Voltage	12VDC				24VDC
Capacity & Number	12V/7AH*1pc		12V/9AH*1pc		12V/7AH*2pcs		12V/9AH*2pcs
Recharge Time	5 hours to 90% after complete discharge
Safety Protection	Over Charge & Over Discharge Protection
Advanced Battery Management	Yes
Backup Time (1PC load)	20 Minutes		30 Minutes		40 Minutes		50 Minutes
DISPLAY
LED Indicators	AC Normal (Green), Battery backup (Yellow), UPS cut off / Fault (Red)
AUDIBLE ALARM
Battery Mode	Two short tones every 8 seconds
Low Battery	Four short tones every second
Overload	Beeping continuously
Fault	Beeping continuously
MANAGEMENT
USB Communication Port	Plus5E series: N/A
	Plus5E-U series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature	0°C-40°C (32°F-104°F)
Humidity	0-95% (Non-condensing)
Acousitc Noise	<40dB at 1M
PHYSICAL
Net Weight	4.68kg	4.68kg	5.76kg	5.76kg	9.08kg	9.16kg	10.8kg		11.8kg
Dimension (DWH)	315.5100141mm				343135208mm

*Product specifications are subject to change without further notice.
