03 Years Warranty

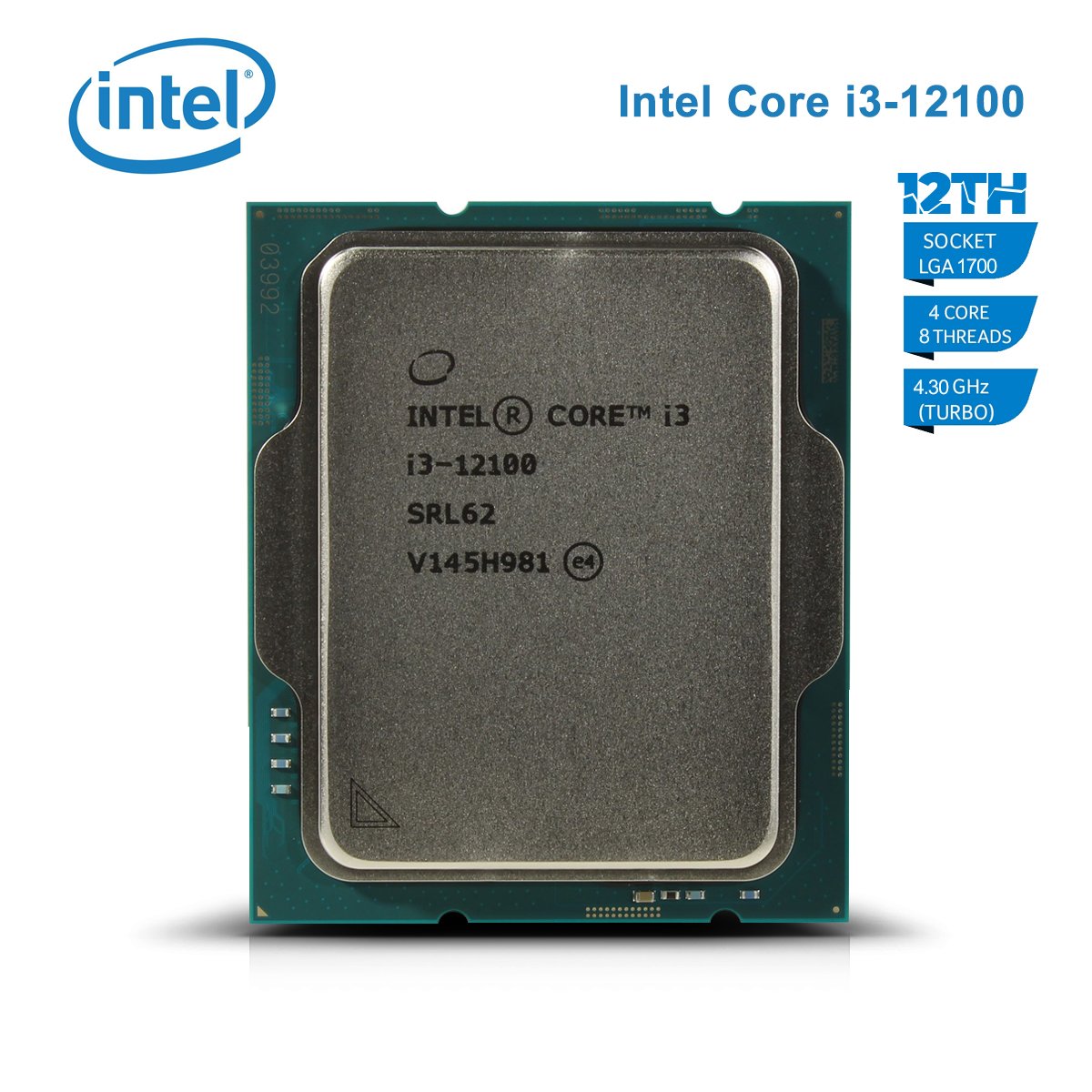

INTEL CORE i3-12100 PROCESSOR 12MB CACHE, 3.30GHZ UP TO 4.30 GHZ (8 THREADS, 4 CORES) DESKTOP PROCESSOR (3YW)
DESCRIPTION :
Essentials | ||
Product Collection | 12th Generation Intel® Core™ i3 Processors | |
Code Name | Products formerly Alder Lake | |
Vertical Segment | Desktop | |
Processor Number | i3-12100 | |
Status | Launched | |
Launch Date | Q1’22 | |
Lithography | Intel 7 | |
Use Conditions | PC/Client/Tablet | |
CPU Specifications | ||
Total Cores | 4 | |
# of Performance-cores | 4 | |
# of Efficient-cores | 0 | |
Total Threads | 8 | |
Max Turbo Frequency | 4.30 GHz | |
Performance-core Max Turbo Frequency | 4.30 GHz | |
Performance-core Base Frequency | 3.30 GHz | |
Cache | 12 MB Intel® Smart Cache | |
Total L2 Cache | 5 MB | |
Processor Base Power | 60 W | |
Maximum Turbo Power | 89 W | |
Supplemental Information | ||
Embedded Options Available | Yes | |
Datasheet | View now | |
Memory Specifications | ||
Max Memory Size (dependent on memory type) | 128 GB | |
Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s | |
Max # of Memory Channels | 2 | |
Max Memory Bandwidth | 76.8 GB/s | |
Processor Graphics | ||
Processor Graphics ‡ | Intel® UHD Graphics 730 | |
Graphics Base Frequency | 300 MHz | |
Graphics Max Dynamic Frequency | 1.40 GHz | |
Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 | |
Execution Units | 24 | |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz | |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz | |
Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz | |
DirectX* Support | 12 | |
OpenGL* Support | 4.5 | |
OpenCL* Support | 3 | |
Multi-Format Codec Engines | 1 | |
Intel® Quick Sync Video | Yes | |
Intel® Clear Video HD Technology | Yes | |
# of Displays Supported ‡ | 4 | |
Device ID | 0x4692 | |
Expansion Options | ||
Direct Media Interface (DMI) Revision | 4 | |
Max # of DMI Lanes | 8 | |
Scalability | 1S Only | |
PCI Express Revision | 5.0 and 4.0 | |
PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 | |
Max # of PCI Express Lanes | 20 | |
Package Specifications | ||
Sockets Supported | FCLGA1700 | |
Max CPU Configuration | 1 | |
Thermal Solution Specification | PCG 2020C | |
TJUNCTION | 100°C | |
Package Size | 45.0 mm x 37.5 mm | |
Advanced Technologies | ||
Intel® Gaussian & Neural Accelerator | 3 | |
Intel® Thread Director | No | |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes | |
Intel® Optane™ Memory Supported ‡ | Yes | |
Intel® Speed Shift Technology | Yes | |
Intel® Turbo Boost Max Technology 3.0 ‡ | No | |
Intel® Turbo Boost Technology ‡ | 2 | |
Intel® Hyper-Threading Technology ‡ | Yes | |
Intel® 64 ‡ | Yes | |
Instruction Set | 64-bit | |
Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 | |
Idle States | Yes | |
Enhanced Intel SpeedStep® Technology | Yes | |
Thermal Monitoring Technologies | Yes | |
Intel® Volume Management Device (VMD) | Yes | |
Security & Reliability | ||
Intel® Threat Detection Technology (TDT) | Yes | |
Intel® Standard Manageability (ISM) ‡ | Yes | |
Intel® Control-Flow Enforcement Technology | Yes | |
Intel® AES New Instructions | Yes | |
Secure Key | Yes | |
Intel® OS Guard | Yes | |
Execute Disable Bit ‡ | Yes | |
Intel® Boot Guard | Yes | |
Mode-based Execute Control (MBEC) | Yes | |
Intel® Virtualization Technology (VT-x) ‡ | Yes | |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes | |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
