Tp-Link AC1200 Wireless Access Point TL-WA1201 (Dual Band/ Gigabit Port) (1YW)
Tp-Link AC1200 Wireless Access Point TL-WA1201 (Dual Band/ Gigabit Port) (1YW) - Image 2
Tp-Link AC1200 Wireless Access Point TL-WA1201 (Dual Band/ Gigabit Port) (1YW) - Image 3
Tp-Link AC1200 Wireless Access Point TL-WA1201 (Dual Band/ Gigabit Port) (1YW) - Image 4

Tp-Link AC1200 Wireless Access Point TL-WA1201 (Dual Band/ Gigabit Port) (1YW)

LKR18,500.00

Availability: Out of stock

Add to wishlist
Add to quote
Categories: Tags:

Tp-Link AC1200 Wireless Access Point TL-WA1201 (Dual Band/ Gigabit Port)
(One Year Warranty)

TL-WA1201

AC1200 Wireless Access Point

  • AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.

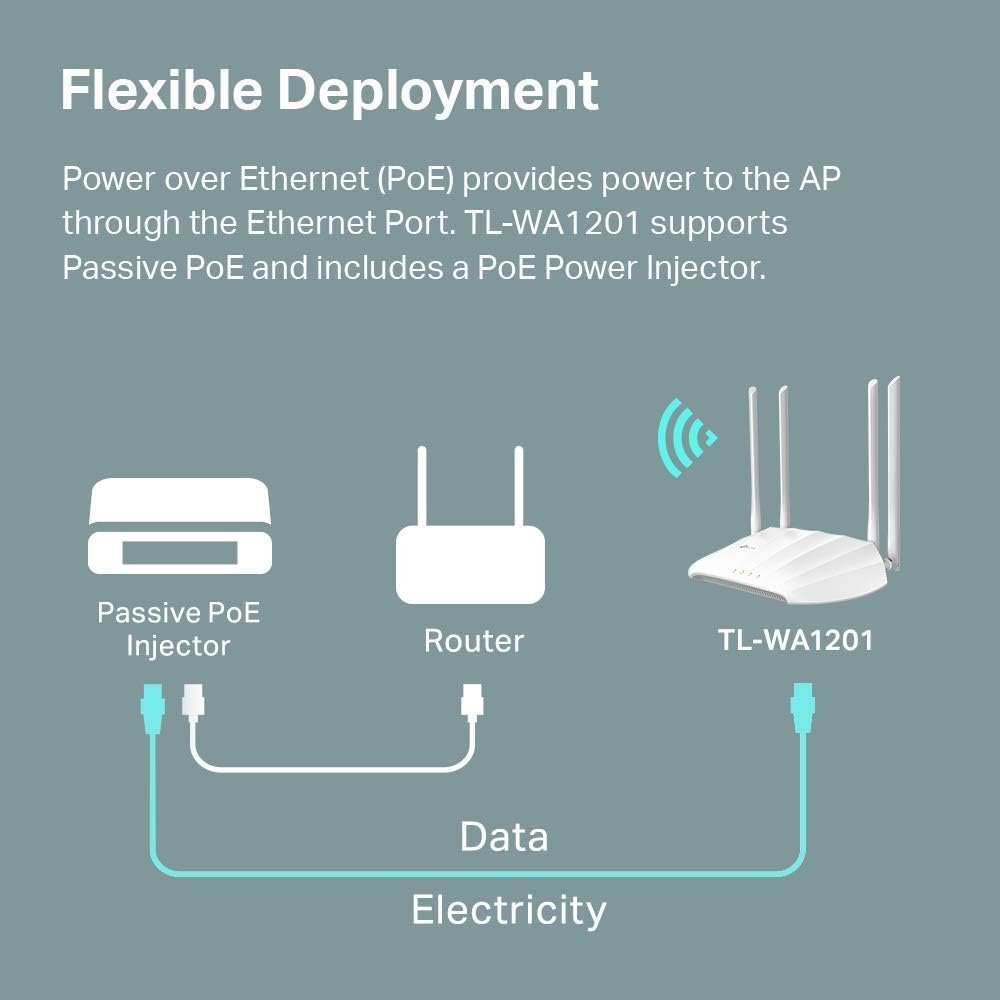

  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.

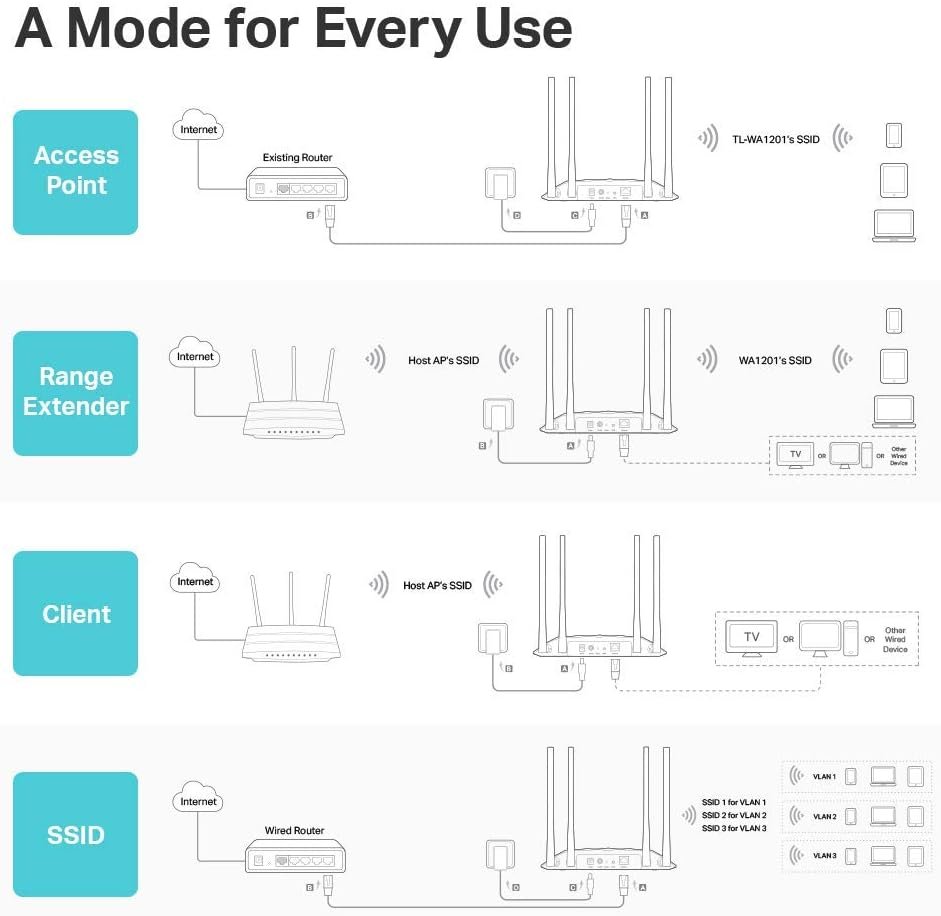

  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

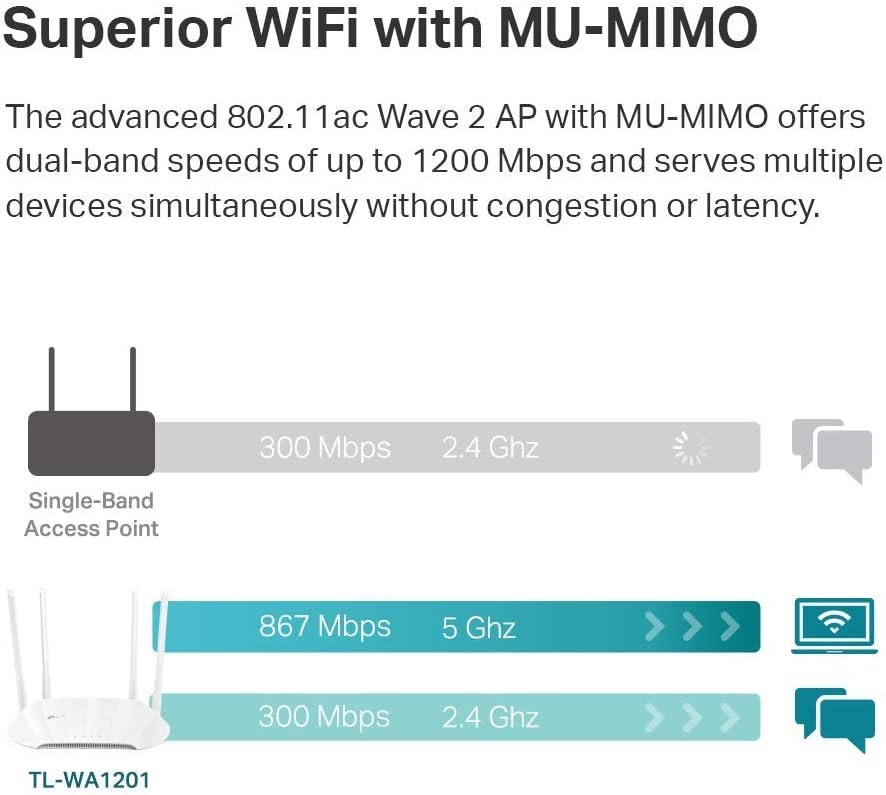

  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.

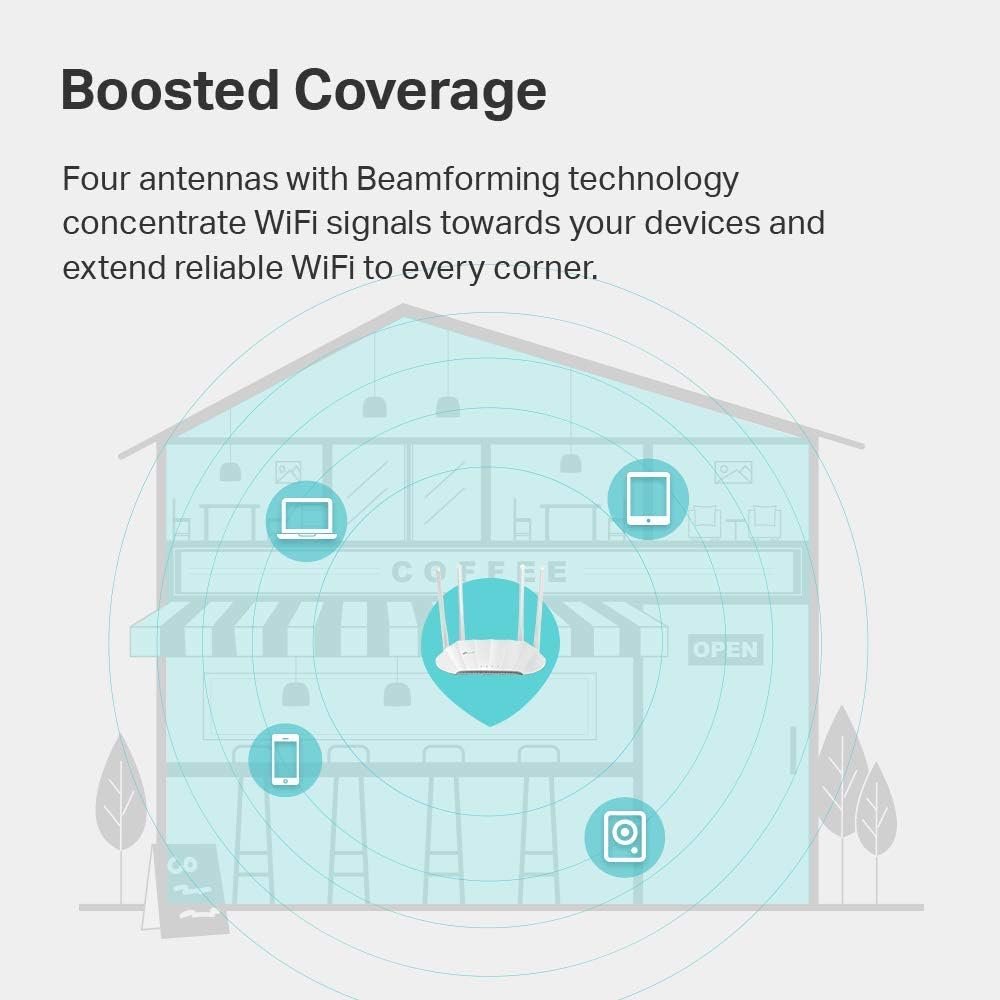

  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.

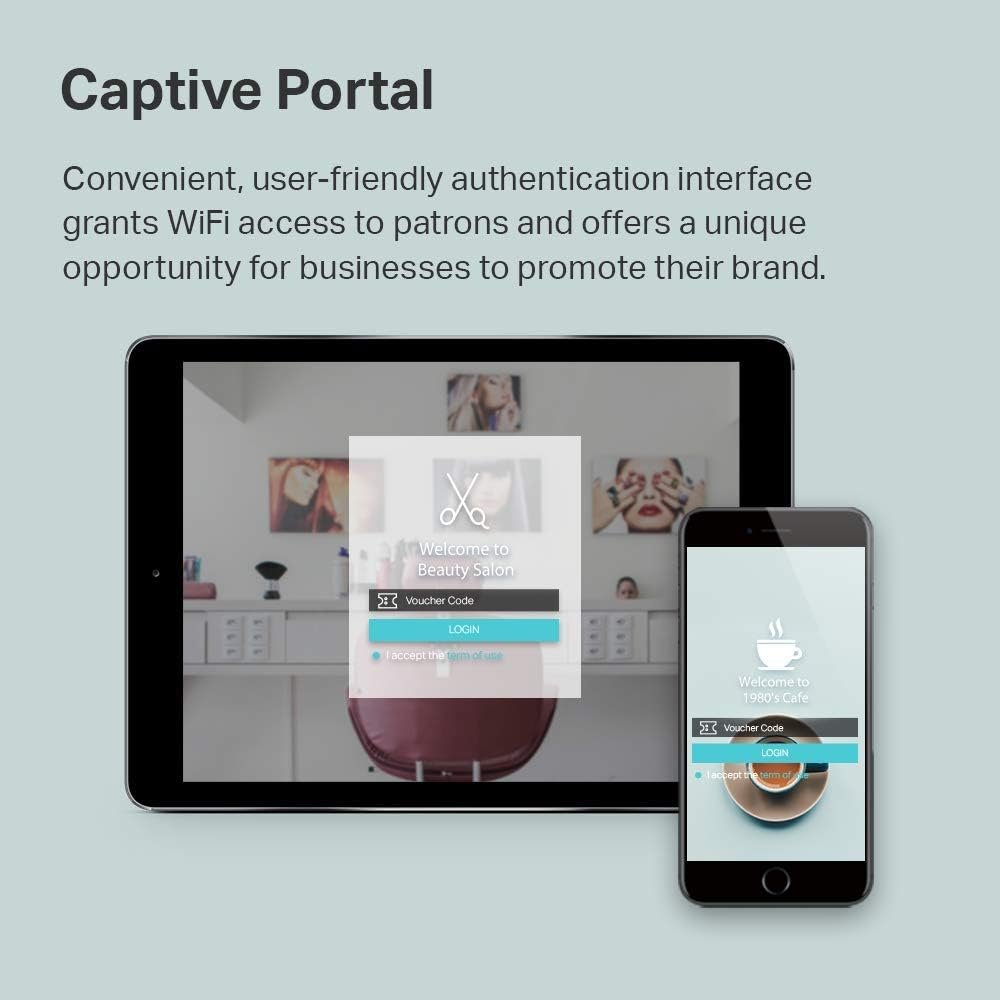

  • Captive Portal – Offers a designed portal page for heightened security and marketing.
HARDWARE FEATURES

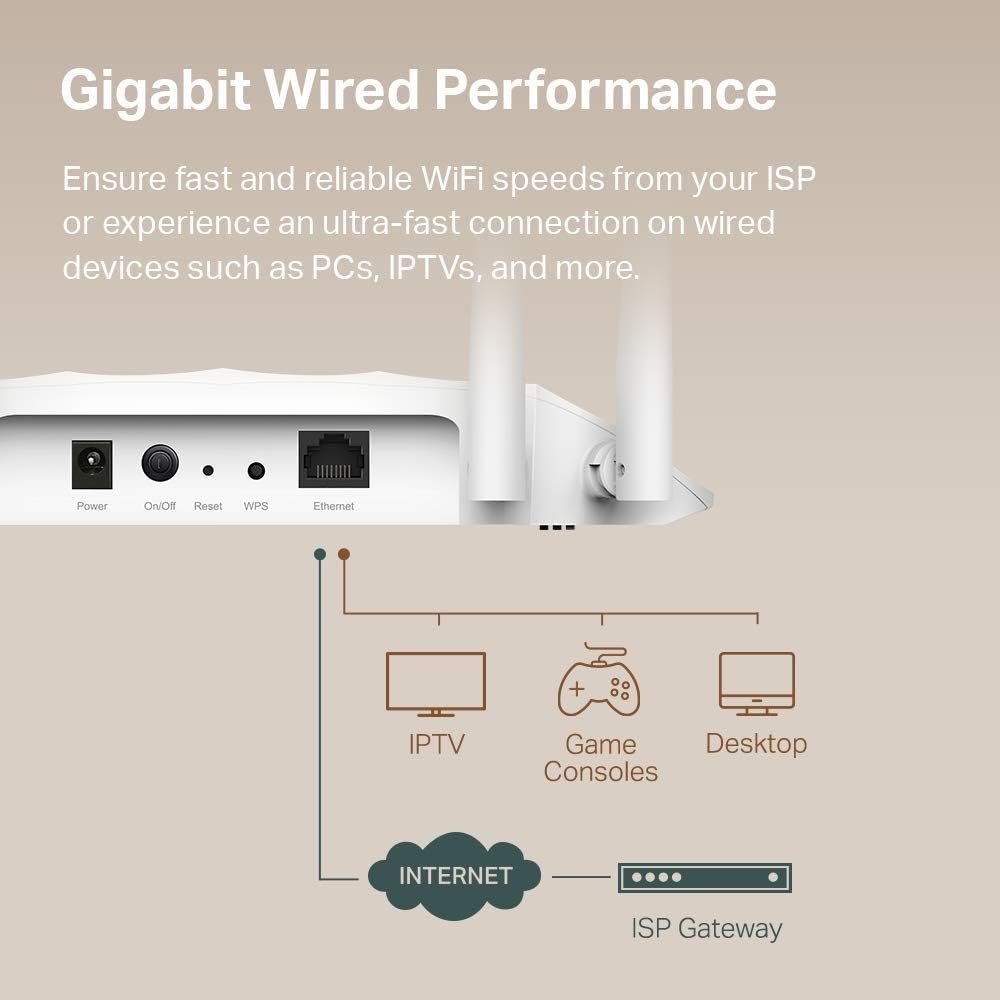

Interface 1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 12V/1.5A
Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H ) 8.9 × 5.7 × 1.5 in
(225×145.5×37 mm)
Antenna Type 4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power < 30dBm
Wireless Modes Access Point, Range Extender, Client, Multi-SSID
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP Server, DHCP Client List
Quality of Service WMM
Advanced Functions Captive Portal
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
Environment Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Protocol Support IPv4, IPv6
For additional version information, please go to the support page.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of MU-MIMO requires clients to also support MU-MIMO.
