Gigabit PCI Express Network Adapter

One Year Warranty

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface	32-bit PCI Express 1 10/100/1000Mbps RJ45 port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED	Status
Wireless Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates	10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode
LED Indicator	1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensions	3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control	IEEE 802.3x Flow Control (Full-Duplex)

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Gigabit PCI Express Network Adapter TG-3468 Resource CD Quick Installation Guide

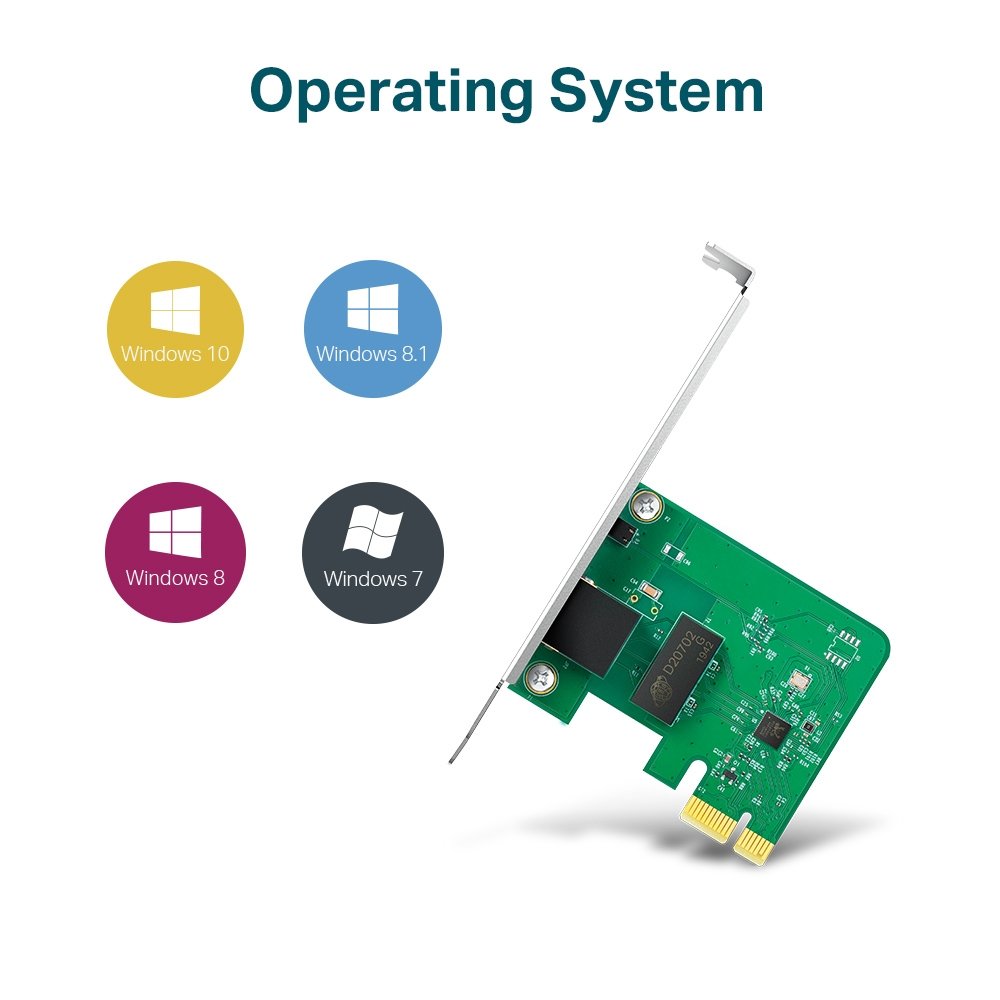

System Requirements	Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
