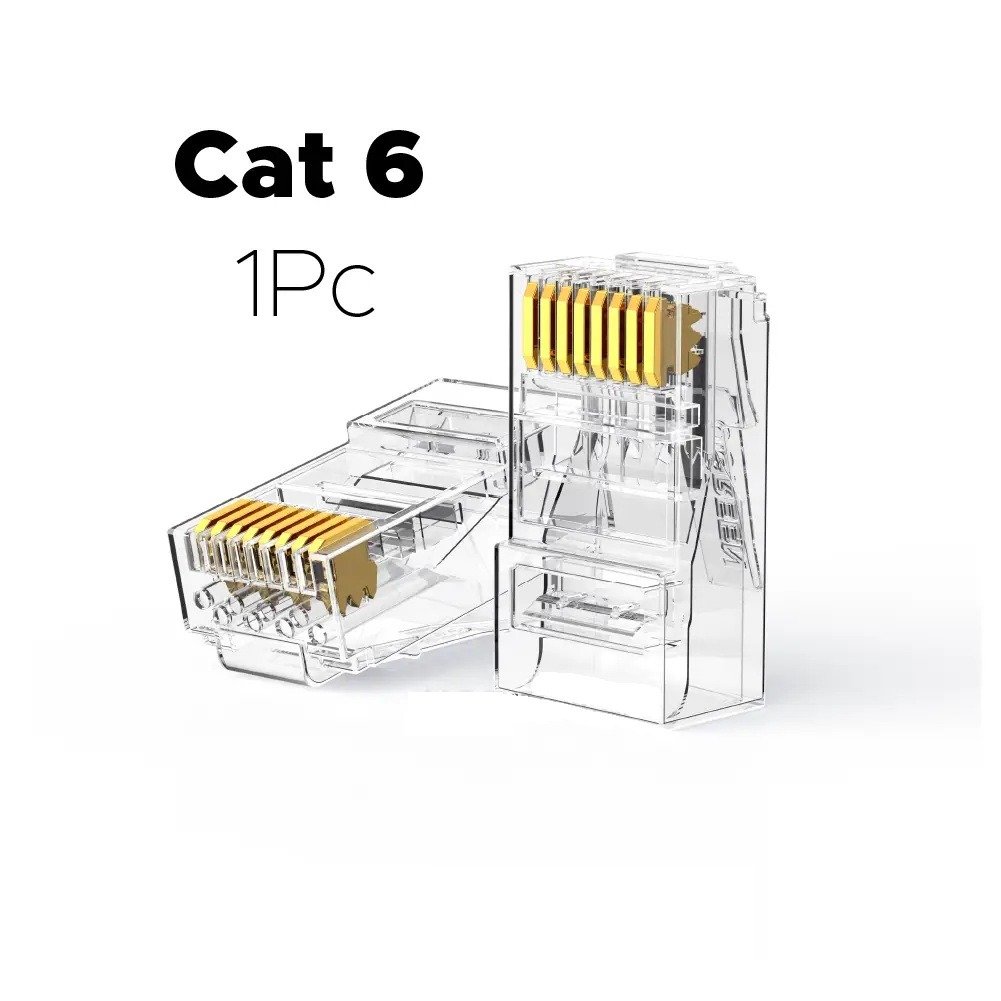

UGREEN RJ45 Cat 6 Unshielded Modular Plug 1 Piece – NW120 – 60558

Professional Custom Network Installations Take complete control of your networking projects. The UGREEN RJ45 CAT6 Crystal Network Modular Connectors allow you to terminate your Cat6 cables to the exact length required. Whether you are wiring a server room, setting up a smart home, or simply running a custom-length patch cable to your desk, these connectors provide everything you need for clean, professional installations.

Precision Engineering & Broad Compatibility Engineered for reliable data transmission, these Cat6 RJ45 8P8C modular plugs are specifically designed for UTP Cat6 stranded cable. They feature a precise wire hole diameter of 1.10mm, making them perfectly suitable for single-stranded or multi-stranded conductors with a core wire insulation diameter ranging from 0.90mm to 1.08mm.

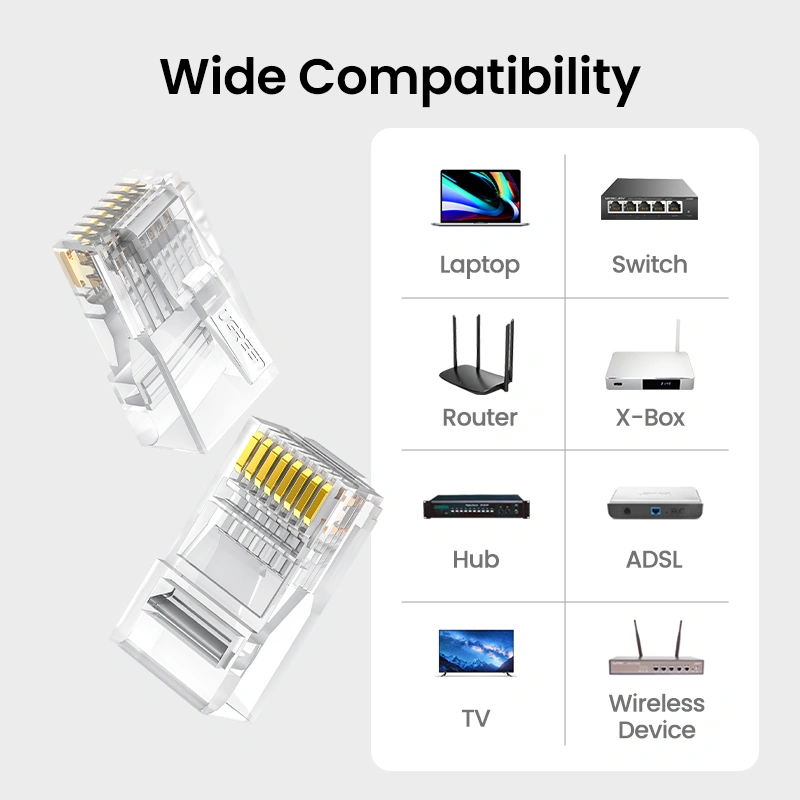

Universal Standard Support No matter your network’s existing configuration, these connectors have you covered. They fully support both EIA/TIA RJ-45 T568A and T568B wiring standards, ensuring seamless integration into virtually any modern Ethernet setup.

Technical Specifications:

• Product Name: RJ45 CAT6 Crystal Network Modular Connector
• Model: NW120 | SKU: 60558
• Connector Type: RJ45 8P8C (Unshielded)
• Compatible Cable Type: UTP Cat6
• Conductor Type: Single-stranded or multi-stranded
• Wire Hole Diameter: 1.10mm
• Supported Insulation Diameter: 0.90mm – 1.08mm
• Wiring Schemes Supported: T568A & T568B
