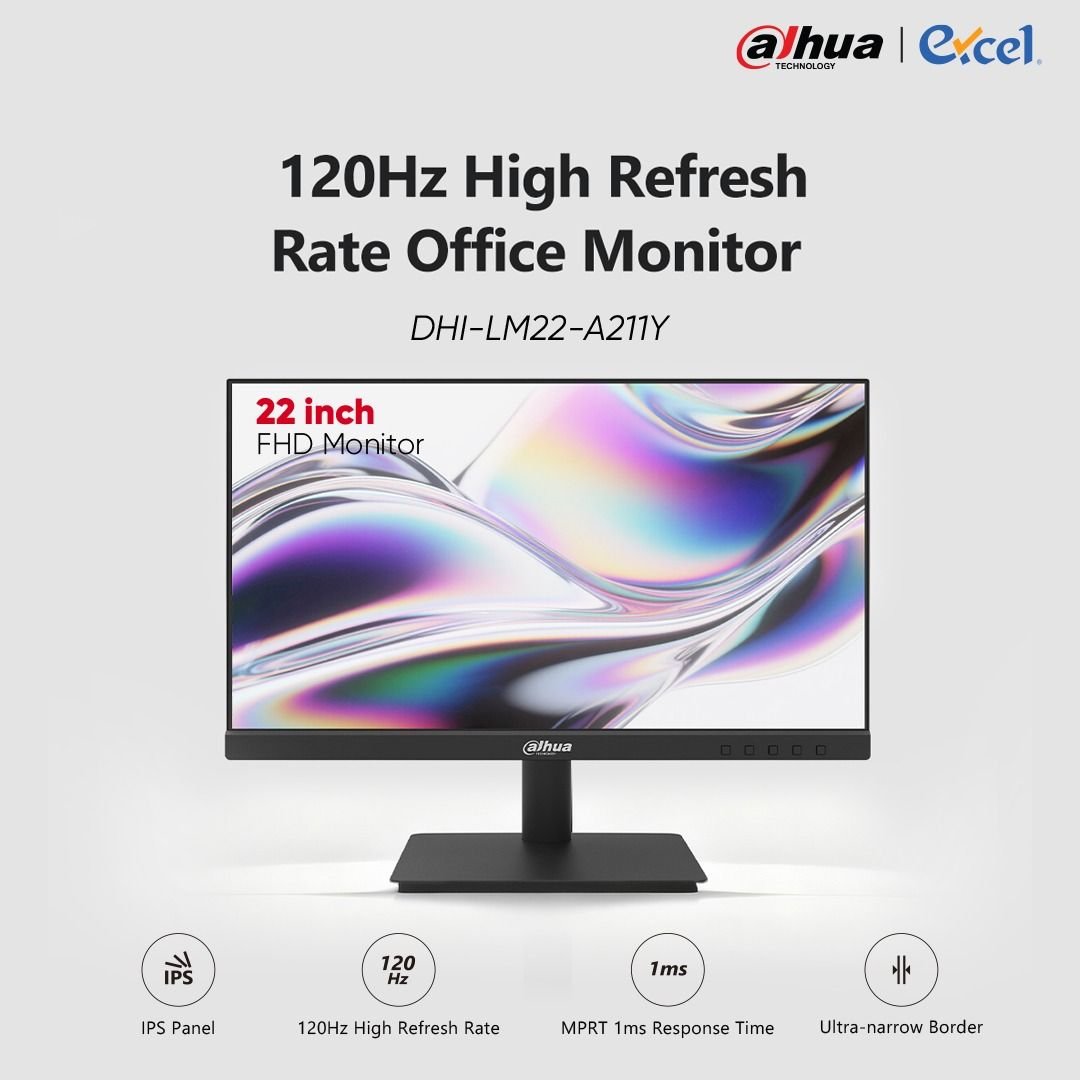

DAHUA 21.5” 120Hz DHI-LM22-A211Y VA PANEL FRAMELESS FHD MONITOR (3YW)

Display

Model

DHI-LM22-A211Y

LCD Technology

IPS

Backlight

ELED

Screen Size

21.45 inch

Aspect Ratio

16:9

Viewing Size

478.656 (H) × 260.28(V) mm

Screen-to-Body Ratio

≥85%

Viewing Angle

178° (H)/178° (V)

Display Mode

Horizontal

Pixel Pitch

0.0831 mm × 0.241 mm

Pixels Per Inch

102.7

Resolution

1920 (H) × 1080 (V)

Refresh Rate

100 Hz, overlocked to 120 Hz

Display Color

6 bit + FRC

Color Gamut

72% NTSC(typ.)

Brightness

250 cd/m² (typ.)

Contrast Ratio

1000:1

Response Time

MPRT 1 ms

Lifespan

30,000 hrs

Operation Hours

7 × 16 H

Surface Treatment

Haze 25%, 3H

Flicker-free Technology

Yes

Device Ports

Input Port

1 × VGA (1920 × 1080@75 Hz), 1 × HDMI 1.4 (1920 × 1080@120 Hz),

Power & Environmental Conditions

Power Supply

12 VDC, 2 A

Power Type

Power adapter

Power Consumption

15.0 W (basic), 19.2W (typ.), 20.0 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%-85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5°/20°

Product Dimensions

491.4 mm × 290.8 mm × 45.2 mm (19.35″ × 11.45″ × 1.78″) (W × H × D), without wall-mount bracket

Package Size

540 mm × 395 mm × 116 mm (21.26″ × 15.55 × 4.57″) (W × H × D)

Frame Width

U/L/R/D：1.7 mm/1.7 mm/1.7 mm/14.2 mm

Net Weight

2.3 kg (5.07 lb)

Gross Weight

3.3 kg (7.28 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94″ × 3.94″)

Accessory

Power adapter, base, HDMI cable, user’s manual(QR code), Energy efficiency label，QSG,legal and regulatory information etc.

Optional Accessory

Wall mount

Certification

Certifications

CE EMC, CE LVD, CE ERP
